Introduction:

One challenge business often face is effectively tracking stage transitions within an Opportunity BPF. In the world of customer relationship management (CRM), tracking the progress of opportunities is critical for managing sales pipelines and improving business outcomes. Business Process Flows (BPF) in platforms like Dynamics 365 offer a visual guide to help teams move through defined stages in various business processes, including sales opportunities.

Understanding when and how an opportunity moves from one stage to the next provides valuable insights into sales performance, bottlenecks, and potential areas for process improvement. For organizations that need detailed tracking of these changes, implementing a robust monitoring solution is essential.

In this post, we will explore how you can monitor and store Opportunity BPF stage changes using Workflows, and Plugins. We’ll guide you through setting up these solutions to log stage changes into a custom entity, allowing you to capture key metrics such as stage duration and transition time.

By the end of this guide, you will have a clear understanding of how to set up automated tracking for Opportunity BPF stages, ensuring you have the data needed for better decision-making and process optimization.

---

Understanding Stage Change in Opportunity BPF

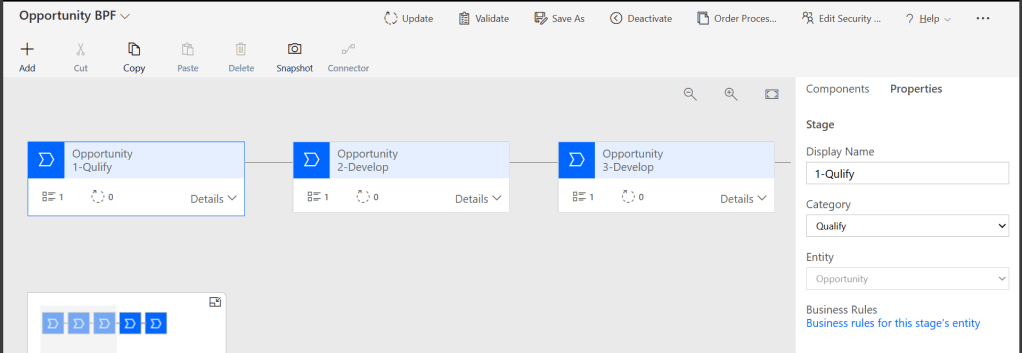

In Dynamics 365, every opportunity progresses through multiple stages in a Business Process Flow (BPF). These stages represent key milestones(Category), such as qualification, development, proposal, and closure. Tracking when an opportunity moves from one stage to another is essential for understanding the progress of a deal, identifying delays, and evaluating the overall sales process.

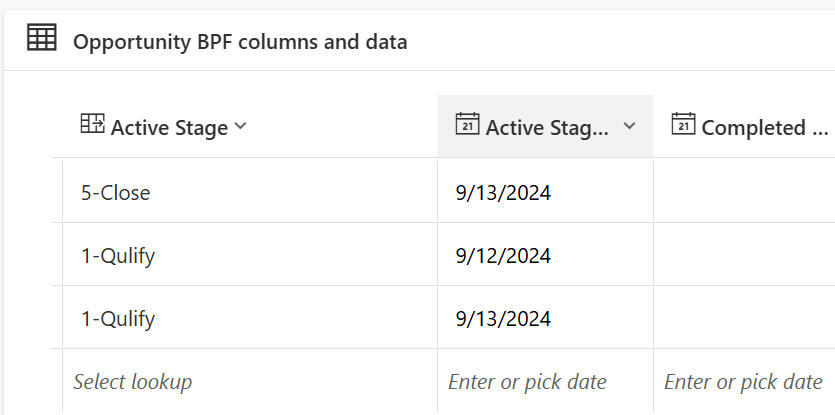

Each stage transition is logged (stored) in the associated BPF table (this table is auto generated when we create any BPF), which records essential details such as the current stage (Active Stage), and the time of transition. However, this data by itself isn’t always easy to analyze or report on, making it crucial to store and manage these records more effectively.

---

BPF Stage Updater Workflow

Before we store the stage change records, Let’s create one column (field) in Opportunity table(entity). This field will store the current stage for the associated opportunity. Create one “Process Stage” (Text column) in Opportunity table.

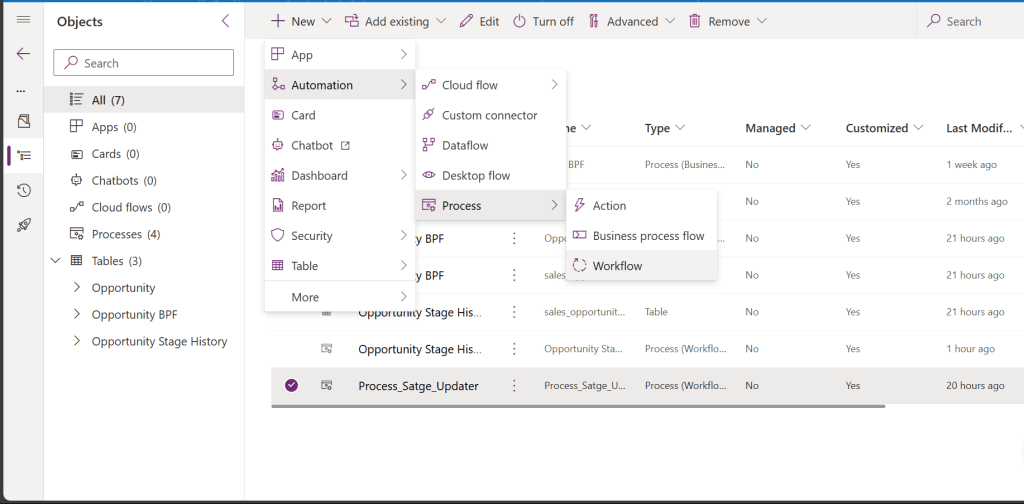

Now let’s create one workflow which updates this field based on the associated BPF table. Click “New” -> Automation -> Process -> Workflow.

Table: Select associated BPF table (in my case it is ‘Opportunity BPF’ ) and click “Create”

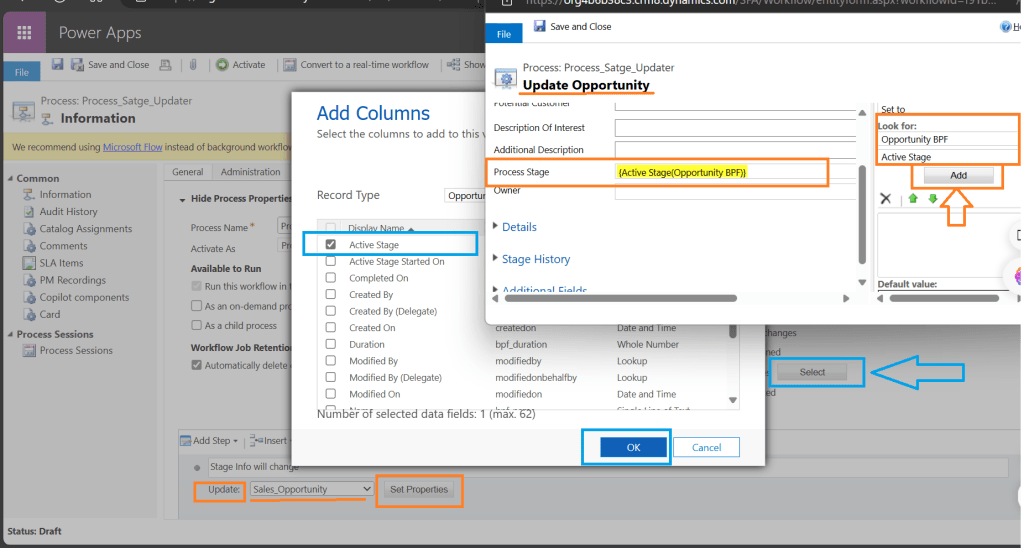

In “Start When:” select ‘Process changes’ (option 4), after that click on “select” (shown in figure below in blue arrow pointing to it). In “Add Columns” window click on “Active stage” column and Press “OK”.

Now, click on “Add Stap” -> Select “Update Record” -> Select “Opportunity” table.
In “Update Opportunity” window, select the “Process Stage” column and add “Active Stage” from “Opportunity BPF” -> click Add -> click OK -> click “Save and Close”.

Now, save workflow -> click on Activate -> Close.

---

Storing Opportunity Stage Change History

To gain actionable insights from Opportunity stage transitions, it’s important to store the details of each change in a structured way. Creating a custom entity or table (e.g., Opportunity Stage History) is the best approach to capture and store this data for further analysis, reporting, and tracking.

The custom table will record key information such as:

• Previous stage (Text)
• Current stage (Text)
• Stage start time (Date and Time)
• Stage end time (Date and Time)
• Duration in each stage (Whole Number -> Calculated Field) [At End of this blog]
• Associated Opportunity (Looup to Opportunity)

Before we create workflow, we need to create one column (field) in opportunity which points to “Opportunity Stage History” record, this will store the current stage history record. (Create one lookup column)

---

Opportunity Stage History Generator Workflow

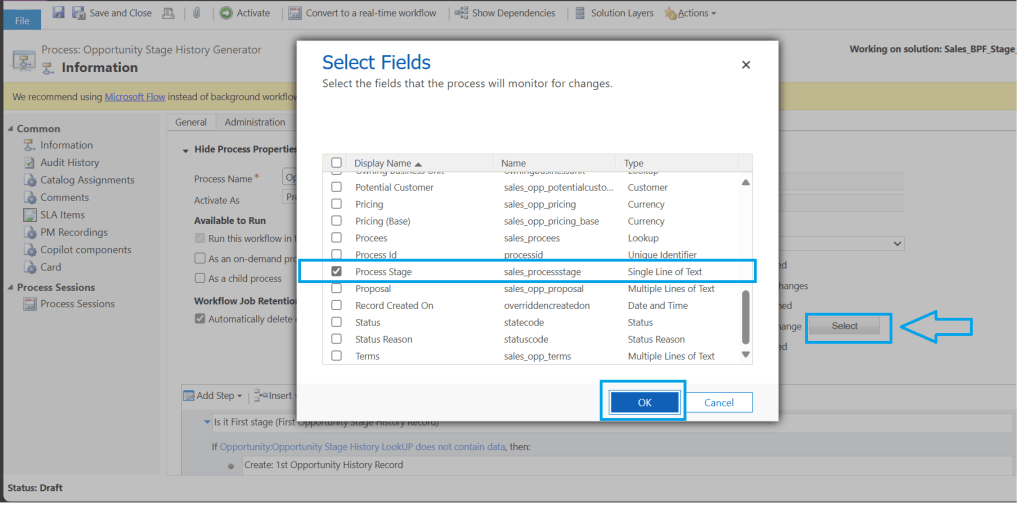

Create one workflow -> select “Opportunity” in table. In workflow configuration window, “Start When:” -> select “Record fields change” -> Click on “Select” -> scroll and find “Process stage” -> select it -> click “OK”.

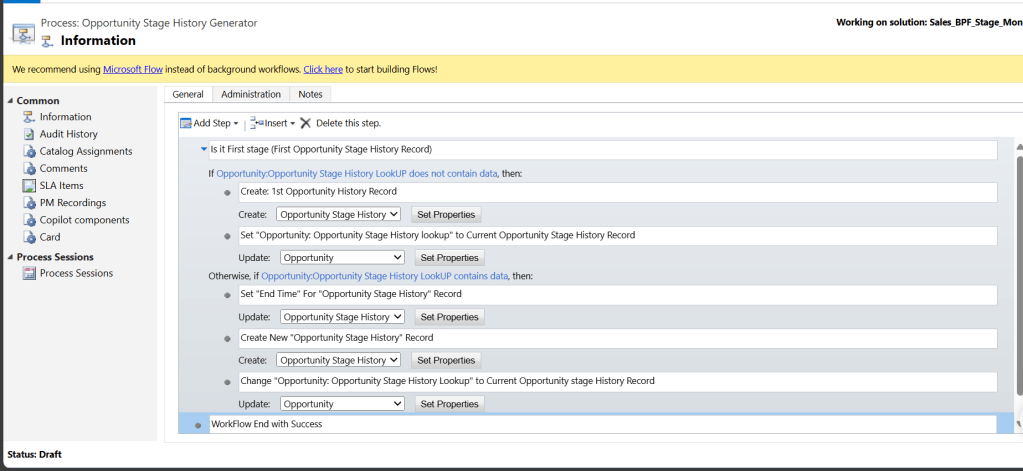

Before we add steps, below figure shows the logic that we want to implement.

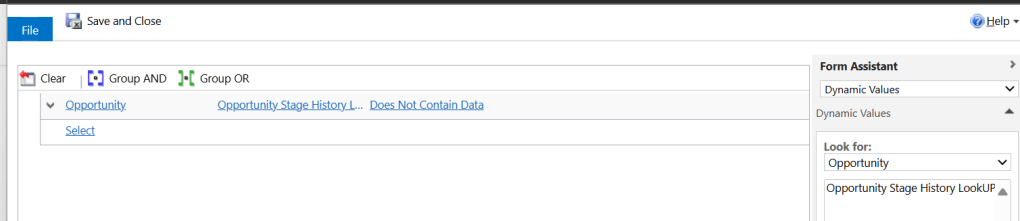

First, we check “is it first ‘Opportunity stage history’ record for current opportunity”. Click ‘Add Step’ -> click ‘Condition’. Configure condition as below, select the look up column which points to “Opportunity stage history”, in this case it is “Opportunity stage History Lookup”, as operation select “Does not contain Data” -> Save and close.

Now, let’s create first opportunity stage history record. Click ‘Add step’ -> Click ‘Create’ -> Select ‘Opportunity Stage History’

In Create record window, configure:

• Current Stage Name -> Process Stage (select from Opportunity table)
• Previous Stage Name -> New Record (Write)
• Start Time -> Execution Time (select from ‘Local Values’ -> ‘Process’)
• Opportunity -> Opportunity (Select Opportunity from Opportunity)

Attach this record to current opportunity, click ‘Add Step’ -> ‘Click ‘Update record’ -> Select ‘Opportunity’ table.

In ‘Update Opportunity’ window, select ‘Opportunity Stage History Lookup’ column -> Add ‘Opportunity Stage History’ from (‘Local Values’ -> Previous step name) -> Save and Close.

Now let’s close the if block, Click on If block -> ‘Add Step’ -> ‘Conditional Branch’. In Otherwise block ‘Add Step’ -> ‘Update a Record’ -> Select ‘Opportunity Stage History’ table. In Update Window select ‘End Stage Time’ -> Select ‘Execution Time’ from (‘Local values’ -> ‘Process’) -> Save and Close.

Create ‘Opportunity Stage History’ record. Click ‘Add step’ -> ‘Create a record’ -> select ‘Opportunity Stage History’ as table. In Create window configure everything as before, in ‘previous stage name’ select ‘current stage name’ from ‘Opportunity stage History lookup’ -> ‘current stage name’ -> Save and Close.

Now add one step for updating ‘Opportunity Stage History Lookup’ to newly created record. Click ‘Add step’ -> ‘Update a record’ -> select ‘opportunity’ as table.
In Update window select ‘Opportunity Stage History Lookup’ column -> Add ‘Opportunity Stage History’ from (‘Local Values’ -> Previous step name) -> Save and Close. Now save the workflow and ‘Activate’ it -> Close.

To add above view in Opportunity, go to Opportunity -> Form -> Main Form -> Add tab -> Add Section -> Add grid (see below image: Blue box) -> Select table and view (‘Opportunity Stage History’ and view) -> select ‘Show related Records’ (see below image: Orange Box)

---

Add Duration – Calculated column

Add ‘New Column’ in the ‘Opportunity Stage History’ table. ‘Data Type’ -> ‘Whole Number’, ‘Behaviour’ -> ‘Calculated’.

Edit the formula as followed:

Save and Close.

---

Best Practices and Considerations for Monitoring Stage Changes

When implementing stage change monitoring for your Opportunity Business Process Flow, there are a few best practices and considerations to keep in mind to ensure that your solution runs efficiently and delivers meaningful insights.

Data Cleanup and Archiving

• Why It Matters: As you begin logging stage changes into a custom table, the data can accumulate quickly, especially in high-volume sales environments. This can impact system performance and database size.
• Best Practice: Implement a data retention policy. For example, you can archive stage change data for opportunities that are closed (either won or lost) after a certain period. You can do this by periodically exporting the data or deleting older records after a set period.

Performance Optimization

• Why It Matters: Triggers on changes, especially those monitoring Opportunity BPF records, can potentially slow down performance if not optimized.
• Best Practice: Use real-time workflows or asynchronous workflows depending on your system’s load. Consider setting conditions to run workflows only when necessary (e.g., only track relevant stages, like “Proposal” to “Close”).

Reporting and Analysis

• Why It Matters: Collecting data is only the first step; it’s crucial to convert this information into meaningful insights for decision-making.
• Best Practice: Create custom dashboards or reports that leverage the data in the Opportunity Stage History table. You can use tools like Power BI or Dynamics 365’s reporting features to build visualizations, such as:
  ⮚ Average time spent in each stage
  ⮚ Bottlenecks in the sales process
  ⮚ Stage transitions that result in the highest success rates

---

Common Use Cases for Stage Change Monitoring

Sales Process Optimization

• By tracking how long opportunities spend in each stage, sales managers can identify bottlenecks in the pipeline. For example, if many opportunities are stuck in the “Proposal” stage, it could indicate issues with product pricing or sales strategies.

Sales Forecasting:

• Knowing how long a deal typically stays in each stage can help predict when an opportunity is likely to close, enabling more accurate sales forecasts. If an opportunity is moving faster than usual through the stages, it may indicate a higher likelihood of closing sooner than expected.

Performance Reviews:

• Sales teams can use the stage duration data to evaluate individual salespeople’s performance. If one salesperson consistently moves opportunities through stages faster than others, it could signal best practices to share with the team. Conversely, if there are delays, it may indicate where coaching is needed.

Customer Journey Mapping:

• Stage change monitoring helps map out the customer journey in more detail, offering insights into how prospects engage with your business during each stage. This can be useful for refining marketing strategies and nurturing leads.

---

Conclusion

Tracking Opportunity BPF stage changes is essential for gaining deeper insights into your sales pipeline, understanding performance trends, and identifying areas for improvement.

By capturing stage transitions and storing key data like stage duration and timestamps in a custom entity, your organization can monitor sales progress in real-time and address bottlenecks proactively. This helps not only in streamlining your sales process but also in making more informed decisions that improve overall efficiency.

With the ability to monitor and analyze every stage of an opportunity, we can ensure smoother processes, reduce inefficiencies, and drive better business outcomes.

Thanks for reading till the very end, feel free to ask any questions or queries. We will be more than happy to answer them.
